Cyclus Tools Headtube Reamer & Facer 1 30MM

Guaranteed straight milling – without cants

Note: Turn the milling cutter evenly in a clockwise direction (also when disassembling the milling cutter).
Always use suitable cutting oil for the material to be machined for the milling process.

Technical Information:

  • Max. Head Tube Length: 190 mm
  • Max. Milling Depth: 15 mm
  • Max. Tube Wall Strength: 4 mm
  • Max. Internal Diameter: 30 mm (1 ), 34 mm (1 1/8 ), 49.6 mm (1.5 )

Models:

1 (30 mm):
Diameter: 30 mm
Part Number: 720005

1 1/8 (34 mm):
Diameter: 30 mm
Part Number: 720006

1.5 (49.6 mm):
Diameter: 30 mm
Part Number: 720147

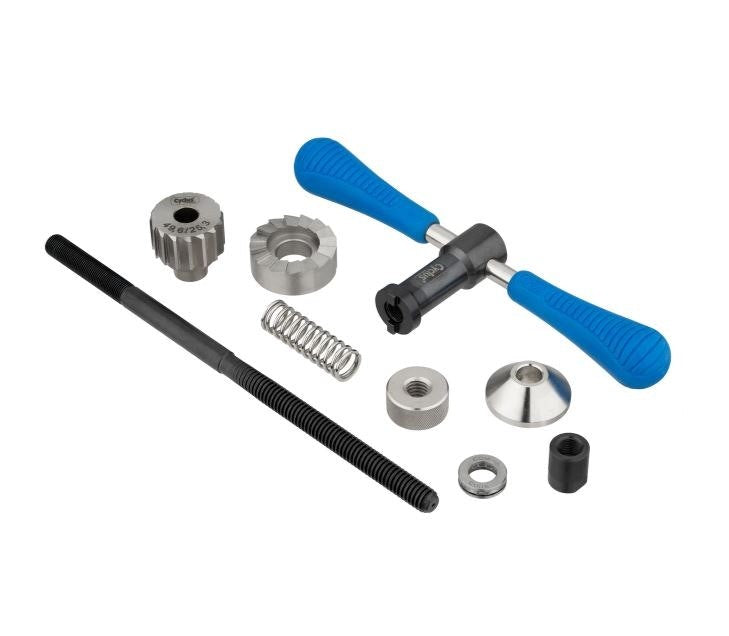

Contents:

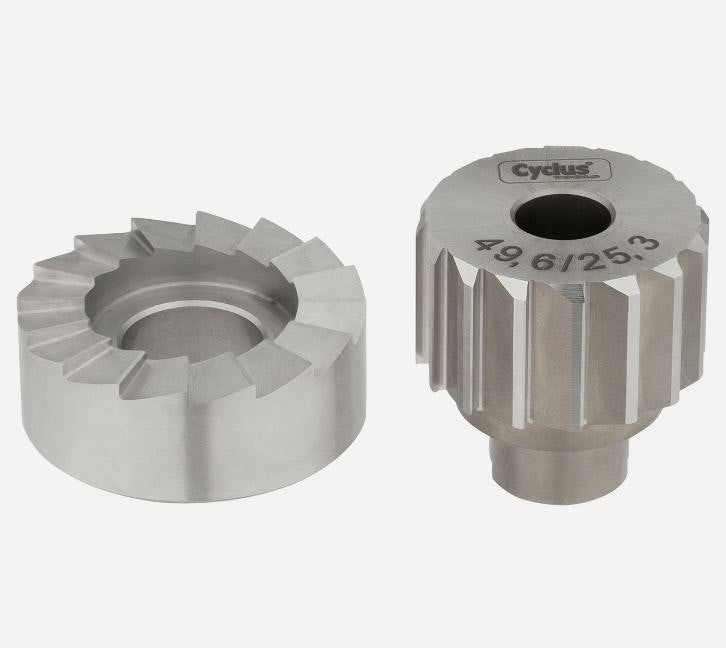

  • 1 x Cyclus Tools double milling head
  • 1 x Cyclus Tools T-handle
  • 1 x Cyclus Tools turning spindle with thrust bearing
  • 1 x Cyclus Tools coil
  • 1 x Cyclus Tools conical guide

Category Head Tube Facing & Reaming

Cyclus Tools Headtube Reamer & Facer 1 30MM

SKU: CYC 720005
Regular price $494.95
Unit price
per
No Reviews
(0 in cart)
FREE SHIPPING

On all orders over $150*

DISCOUNTS GUARANTEED

Full price is never an option.

SECURE CHECKOUT

Fast & secure payments.

Cyclus Tools Headtube Reamer & Facer 1 30MM

Guaranteed straight milling – without cants

Note: Turn the milling cutter evenly in a clockwise direction (also when disassembling the milling cutter).
Always use suitable cutting oil for the material to be machined for the milling process.

Technical Information:

  • Max. Head Tube Length: 190 mm
  • Max. Milling Depth: 15 mm
  • Max. Tube Wall Strength: 4 mm
  • Max. Internal Diameter: 30 mm (1 ), 34 mm (1 1/8 ), 49.6 mm (1.5 )

Models:

1 (30 mm):
Diameter: 30 mm
Part Number: 720005

1 1/8 (34 mm):
Diameter: 30 mm
Part Number: 720006

1.5 (49.6 mm):
Diameter: 30 mm
Part Number: 720147

Contents:

  • 1 x Cyclus Tools double milling head
  • 1 x Cyclus Tools T-handle
  • 1 x Cyclus Tools turning spindle with thrust bearing
  • 1 x Cyclus Tools coil
  • 1 x Cyclus Tools conical guide

Category Head Tube Facing & Reaming
