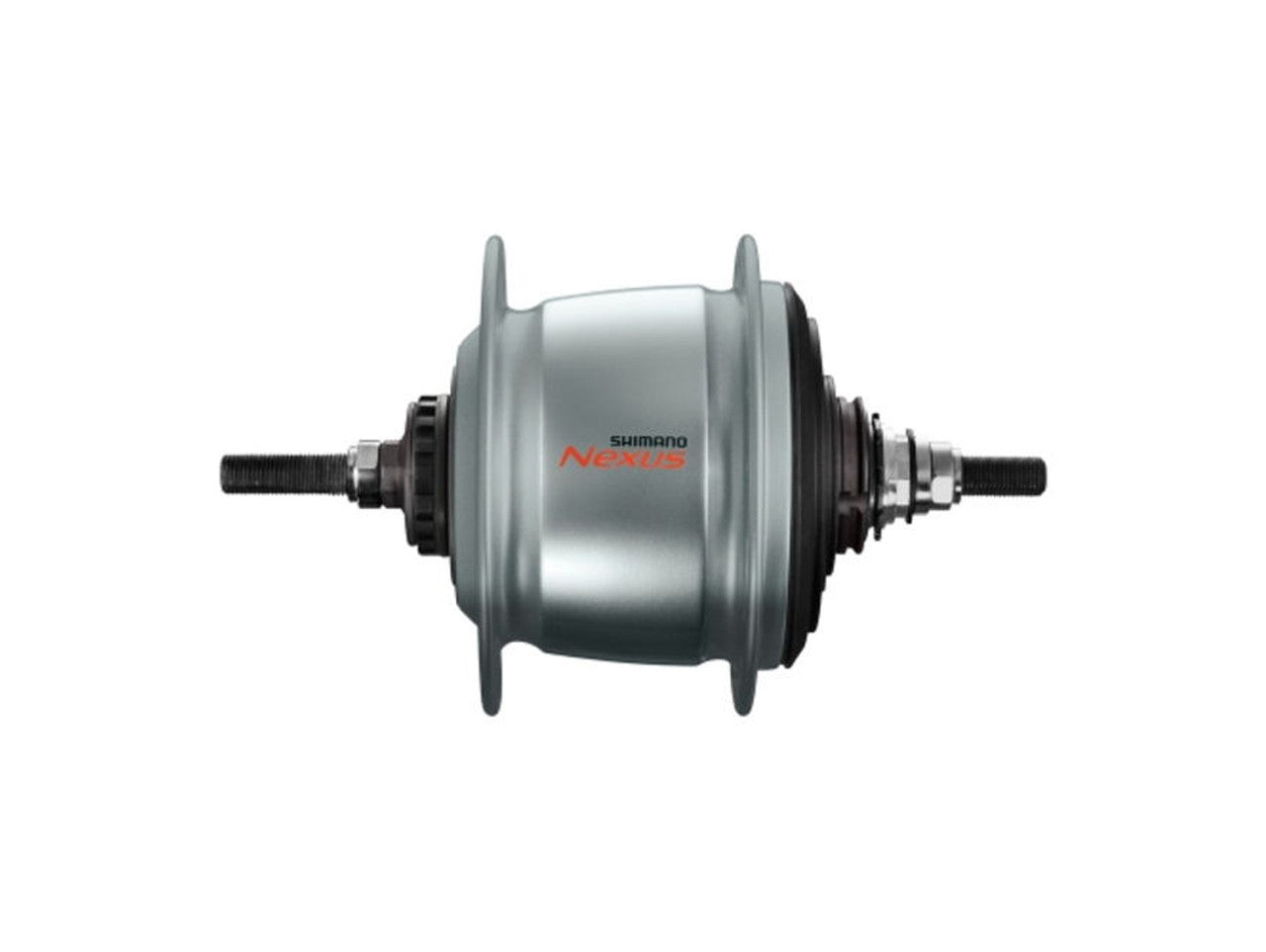

Designed for smooth shifting even with the high tension of the E-BIKE chain, the Shimano NEXUS SG-C6000 series hubs provide an efficient 8-speed range and guarantee a long life.
Technologies
Inter-8:The INTER-8 hub has increased its gear ratio to 307%, compared to 244% of the INTER-7 hub. The INTER-8 hub also incorporates a closer gear ratio allowing a more efficient and comfortable pedaling cadence. A truly "all conditions" internal hub has arrived.
Power Modulator:The Power Modulator unit is more effective and easy-to-control braking for casual and recreational cyclists.
Features
Improved overall riding comfortability and efficiency
Smooth shifting performance even under high chain tension induced by E-BIKE motors
Improved ratchet design, for better gear engagement.
Improved shifting performance and efficiency (300% improved)
Improvement is suitable for both E-bike and non E-bike use
Specifications
Series NEXUS C6000 Series Colour Silver Average Weight 1660g Brake Type INTER-M Recommended Brake Model BR-C6000/ BR-C3010/ BR-C3000 Speeds 8 Gear Ratio 307% Gear Ratio 1: 0.527
2: 0.644
3: 0.748
4: 0.851
5: 1
6: 1.223
7: 1.419
8: 1.615 Shifting Structure Low Normal Flange Distance 58.3mm Offset 2.7mm P.C.D. left / right 92.6mm Flange diameter 105.2mm O.L.D. 132mm Driving Efficiency High Flange Width Left: 3.2mm
Right: 3.2mm Silent Clutch Yes Spoke Size #13 / #14 Rear Speeds 8
