Lighter front shifting operation and easier setup for mixed-terrain riding

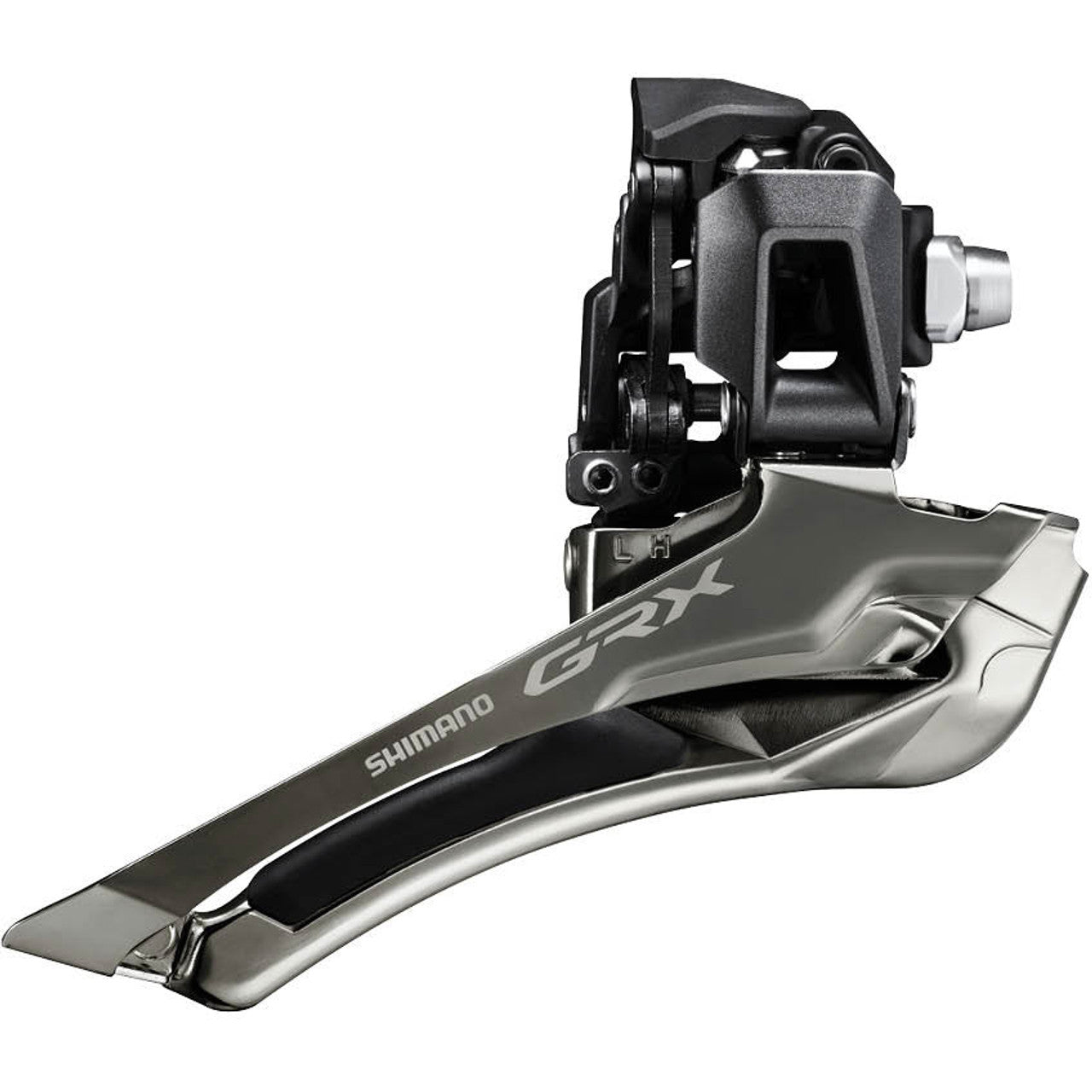

The SHIMANO GRX RX-820-F front derailleur offers lighter front shifting operation and easier setup thanks to its toggle link construction and integrated cable tensioner. Features include a 2.5 mm outboard chain line design that provides wider tire clearance for mixed-terrain riding, and it accommodates a 17T front chainring range for wider gearing options.
Features
Lighter front shifting
Smooth and natural shift action
Toggle link construction
Wider tire clearance
Chain line +2.5 mm vs. conventional road front derailleur
Wider range front gearing
17T range
Precise and easy front derailleur adjustment
Routing options include bare shift cable and integrated cable housing stop
Integrated cable tension adjustment
Technical Specifications
MODEL NO: FD-RX820
SERIES: GRX 12-speed
Average weight: 96
Front speeds: 2
Rear speeds: 12
Compatible chain: HG 12-speed
Chain line (mm): 47
Chainstay angle (deg.): 63-66
Top gear teeth: 46-48T
Total capacity: 17T
