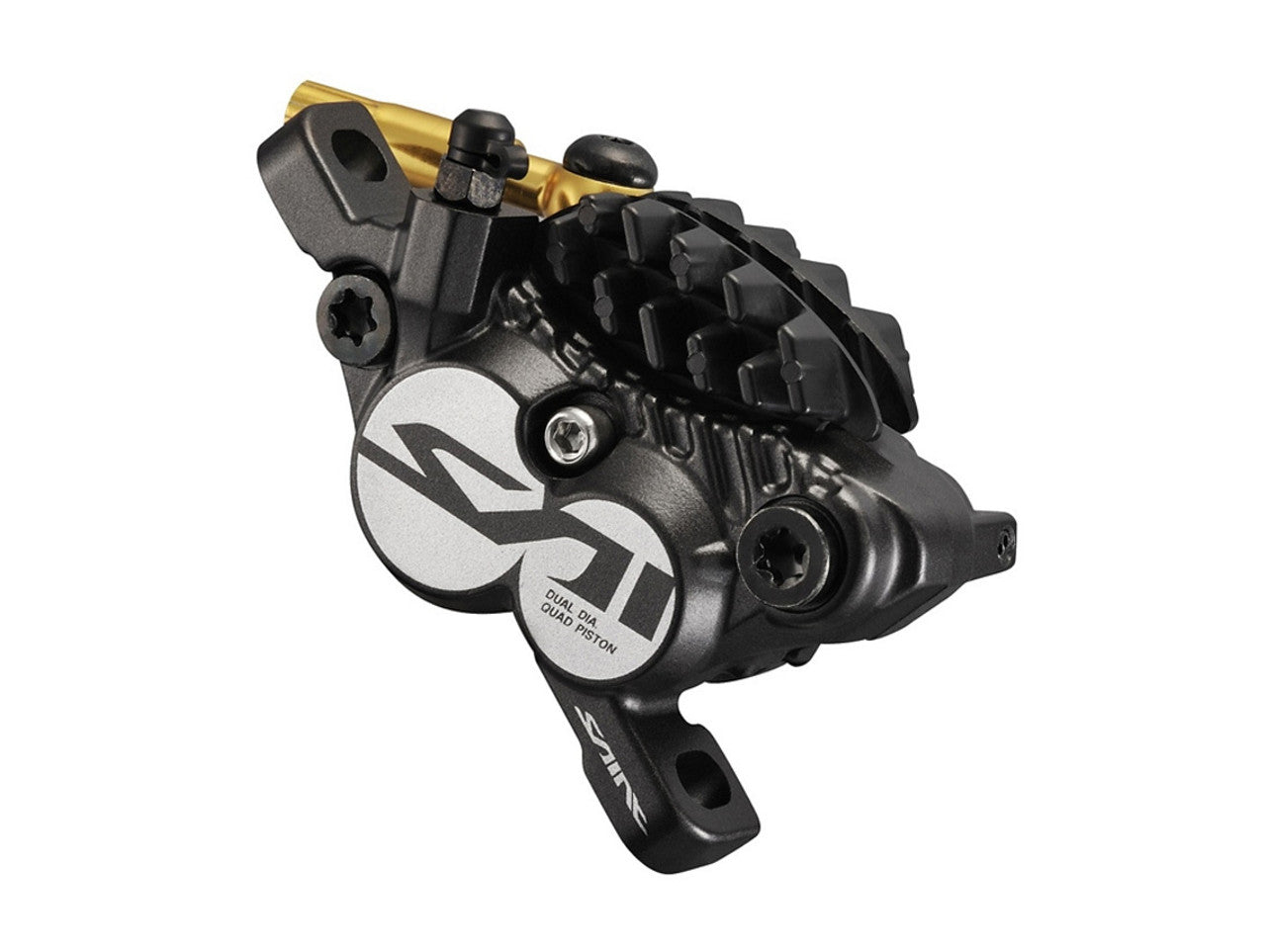

The ultimate gravity and downhill brake, the Saint hydraulic disc brake features a rigid caliper, 4-ceramic pistons, and integrated Ice Technologies heat management.

Technologies

Ice Technologies -The fade, which can occur to disc brake rotor and pad when braking on a long downhill ride for instance, has a negative impact on the braking performance. Shimano has adopted Ice Technologiesdisc brake rotor and Ice Technologies pad to realise the cooling technology for consistent performance. The clad disc brake rotor blade, which has a 3 layer-sandwich structure of stainless steel, aluminum and stainless steel, provides better radiation performance achieving from 400?C to 300?C surface temperature. Also, the radiation fin has been adopted for the pad. Moreover, the clad disc brake rotor blade and the radiator fin provide long pad life, less noise, less fade and lightweight.

One Way Bleeding -was developed for quick and easy prevention of air in our hydraulic system. We have streamlined the oil route throughout the system to prevent air bubbles from being captured in the system.

One way oil routing plus a funnel tool with mineral oil provides an easy and clean bleeding system.

Features

ICE Technologiesheat management

High power 4-ceramic piston caliper

Easy and clean bleeding

One Way Bleeding caliper

Funnel bleeding tool

Pad: H01A Resin/H03C Metal

Weight: 306g (Resin pad with radiator fin)

Specifications

Colour Series color Average Weight 306 g (w/ radiator fin) Remarks Single item weight Brake hose colour (kit) Black, White Brake hose (kit) SM-BH90-SBLS Brake Type Hydraulic disc brake Caliper fixing bolt Anti loosen method: Snap Ring

Tool size: 5mm Hose joint Banjo J-Kit spec (for OEM) Yes Mount type(available for IS mount with mount adapter) Post-type Oil Shimano Mineral One way bleeding Yes Pad: Standard H01A Resin, H03A Resin, H03C Metal Pad mount Pad axle Piston 4 Recommended brake lever BL-M820 Recommended brake rotor SM-RT99, SM-RT86 Ice technology pad compatible caliper Yes
